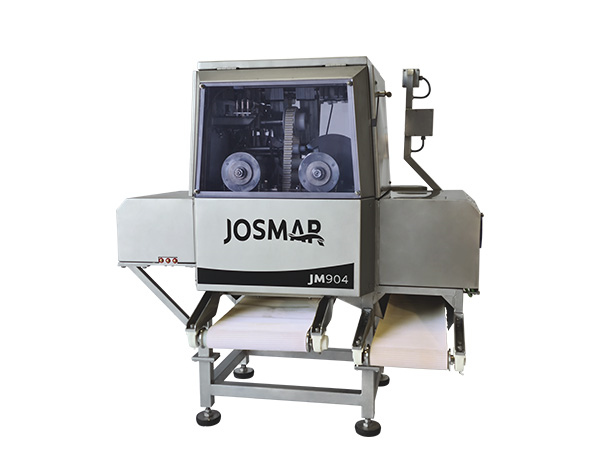

FLATFISH FILLETING MACHINE, JM-904

The JM-904 filleting machine has been designed for filleting different species of flatfish.

Specifications:

Applications: Flounder, halibut, dab, sole, black scabbardfish, and other similar species.

Throughput rate: 40/50 fish/min, depending on the fish and the skill of the operator.

Working range: Up to 600 mm of total length (approx.) and up to 250 mm of total width.

black scabbardfish: Up to 1000 mm of total length, head included).

Max. fish thickness:  50 mm.

Fish feeding system: From the top of the machine.

Product to be processed: Fish previously beheaded (with or without guts).

Manufacture: AISI-316 stainless steel, corrosion-resistant materials, and food-grade plastics.

Design: Compact and robust. Minimum foot-print.

Safety: Provided with an emergency stop device. CE marking.

Operators: 1 person.

Complementary equipment:

• Elevated working platform.
• Fish buffer tank for feeding the machine easily.
• Separated modular conveyor belts for fillets and bones exit.
